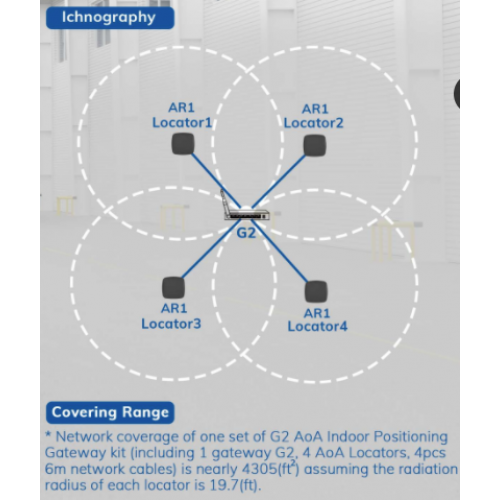

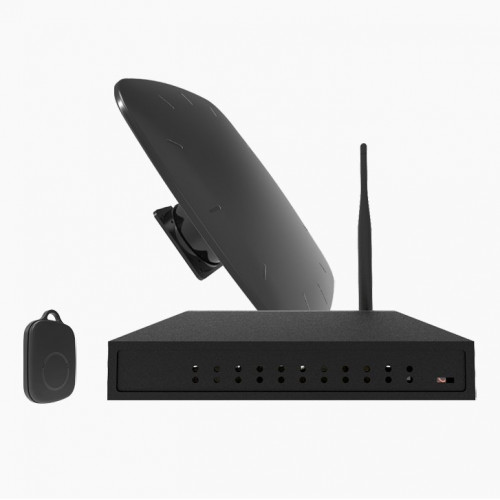

AoA G2 gateway kit including G2 gateway, x4 LR1 locators, x3 MWL01 beacons and x5 6m network cables. The locators detect beacon AoA advertising and forward the data to the G2 gateway. The locator kit has an operating area of 400m². Use multiple kits to cover larger areas.

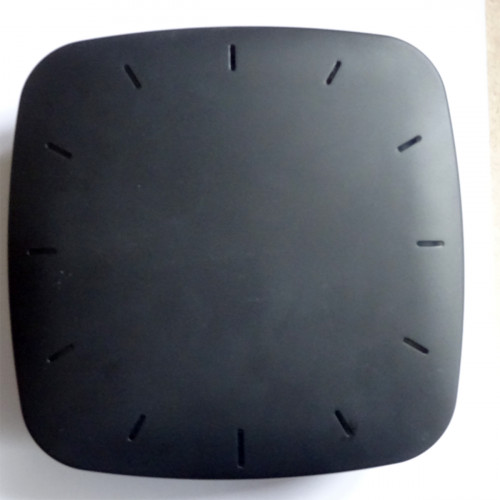

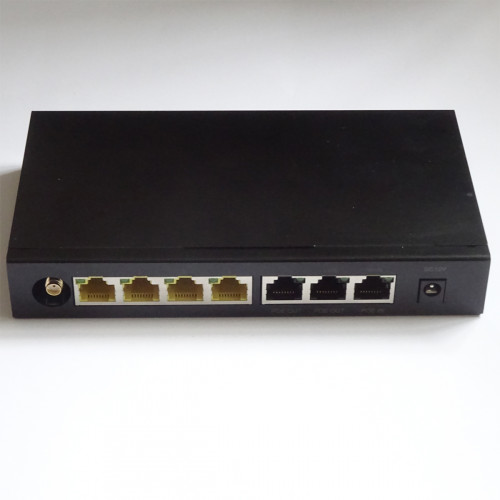

The LR1 locators are powered by the G2 gateway. The G2 is powered using the included mains power supply or via PoE. It connects via Ethernet or WiFi but Ethernet is recommended for maximum throughput. The G2 supports up to 1000 beacon data packets per second.

The G2 is administered via a web based interface inside the device. The G2 sends antenna IQ data to a server via HTTP(S) or MQTT. Antenna IQ data needs to be converted into angles and angles into locations using your software or BeaconZone PrecisionRTLS™.

The MWL01 beacon is also available separately.

Includes fixing screws, 12v 2A mains power supply, international power adapter and 4 antenna bases.

Operating temperature -20-60°C. Only for indoor use.

Black only.

Includes access to the Minew Technical Area containing the user guide.

Size Gateway 171x98.6x27.2mm Locator 224.5x224.5x75.7mm

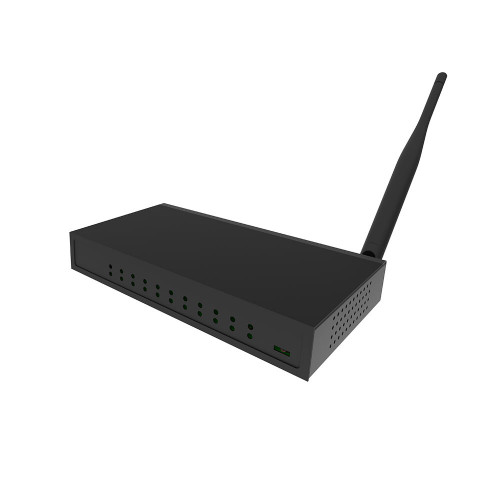

G2 AoA Gateway Kit

  • £958.80

  • Ex vat: £799.00

  • No waiting weeks - delivery from stock
  • Ex vat outside UK - shown after registering
  • Fast 1-2 day delivery by UPS courier
  • Expert English UK based support

Read more about delivery

Read past customer feedback

Tags: bluetooth, wifi, ethernet, gateway
