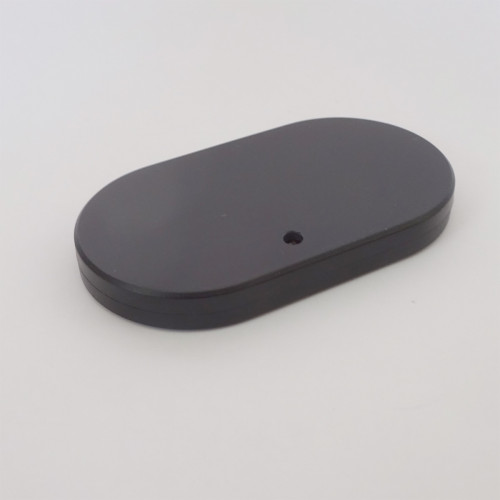

Thin (4.8mm) beacon with acceleration, light sensors and buzzer. Comprehensive product that can be used in many different modes: 1 channel advertising, 2 channels advertising, 1 + 2 advertising, sensor advertising and Meeblue fixed data. The two main advertising channels can be iBeacon, Eddystone UID, Eddystone URI or user defined. When sensor advertising, the main channels are disabled and advertising includes a unique id and battery voltage.

The accelerometer is only used for motion triggered broadcast and has adjustable threshold (32mg to 2032mg). The accelerometer is not available in advertising data.

The light sensor is only used for light triggered broadcast which can be configured to transmit either when light or dark with adjustable sensitivity.

The buzzer can be controlled via a Bluetooth Service Characteristic (GATT connection).

Uses the energy efficient nRF52810 for a longer battery life. Pressing the button turns off and on and can also be used for button triggered broadcast.

Includes 3M sticker and battery.

Available in black only.

iOS and Android configuration app.

NOTE: Due to the thinness of this beacon it is ultrasonically sealed. The battery can't be changed without destroying the case.

Supplied with details how to access technical and programming information.

Transmission iBeacon,Eddystone,acceleration
Battery size CR2032
Number of batteries 1
Battery included yes
Battery life 12 months @ 1s (depends on settings)
Size 45mm x 25.5mm x 4.8mm
Weight 7g
Waterproofing no
Includes sticker yes
Password to configure yes
Power range 4dBm to -40dBm
Buzzer yes
Temperature sensor no
Humidity sensor no
Accelerometer sensor yes
Motion triggered broadcast yes
Operation modes sleep, configuration, normal
Button press yes
On off switch yes
Chip NRF52810
Standby current 2.3uA
Working current 5.3mA
Transmit distance 70m
Android SDK yes
iOS SDK yes
Android config app yes
iOS config app yes

UL1 Thin
