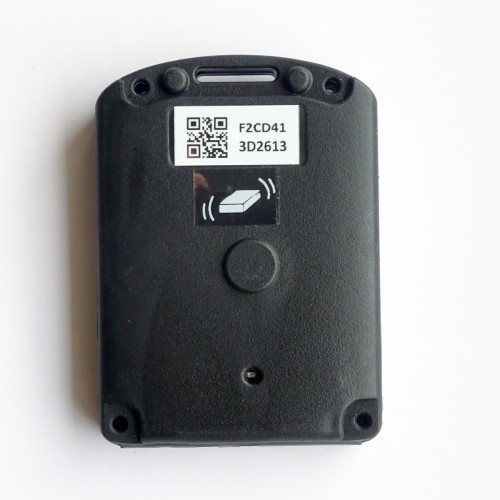

  • iBS01RG

Accelerometer sensor beacon for sensing and IoT applications. Can power from 2x CR2032 or via micro USB smartphone charger (not supplied). Slide switch on bottom selects between battery and micro USB power. Also has a detectable button press. 4 Holes in the corners for screw mounting. Loop at top for hanging/wearing.

Note that this beacon is not an iBeacon nor Eddystone beacon. The advertising data is instead wholly used for sensor data. You will need an app or gateway to scan and get the advertising data. The sensor data (x, y, z 2 bytes for each axis), battery level and button press are all in the advertising data. The accelerometer samples every 100ms and the advertising interval is fixed at 300ms (all 3 samples per packet). Measures up to +/- 4G.

For only movement detection see the iBS01G.

60 days battery life.

Black only.

Doesn't include batteries (takes 2 x CR2032).

An Android configuration app allows changing of transmit power level. There is no iOS configuration app.

Supplied with details how to access technical and programming information.

Transmission sensor
Battery size CR2032
Number of batteries 2
Battery included no
Battery life 60 days
Size 58mm x 42mm x 11mm
Weight 12g
Waterproofing no
Includes sticker no
Password to configure no
Power range 4dBm to -12dBm
Buzzer no
Temperature sensor no
Humidity sensor no
Accelerometer sensor yes
Motion triggered broadcast no
Operation modes normal, configuration
Button press yes
On off switch yes
Chip NRF51822
Transmit distance 30m
Android config app yes
iOS config app no
