  • iBS03RG

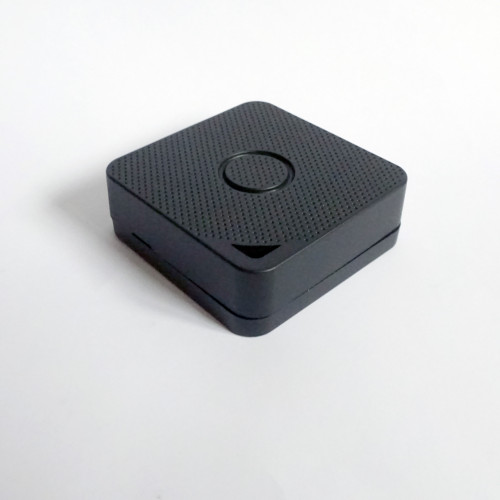

IP67 Waterproof, Bluetooth LE accelerometer sensor beacon for sensing and IoT applications. Powered by included CR2450 battery for up to 4 years battery life at default settings. Slide switch inside turns on and off. Also has a detectable button press. Loop at side for hanging/wearing.

Note that this Bluetooth beacon is not an iBeacon nor Eddystone beacon. The advertising data is instead wholly used for sensor data. You will need an app or gateway to scan and get the advertising data. The xyz movement, battery level and button press are all in the advertising data.

Acceleration range: +-2G, +-4G(default), +-8G, +-16G, Offset Accuracy +-40mg

2m drop protection.

Black only.

An Android configuration app allows changing of transmit power level. The  advertising interval is fixed at 300ms to ensure all the movement data is transmitted. There is no iOS configuration app.

Supplied with details how to access technical and programming information.


Beacons
Transmission sensor
Battery size CR2450
Number of batteries 1
Battery included yes
Battery life 6.4 months
Size 43mm x 43mm x 14.8mm
Weight 24g
Waterproofing IP67
Includes sticker no
Power range 4dBm to -12dBm
Buzzer no
Temperature sensor no
Humidity sensor no
Accelerometer sensor yes
Motion triggered broadcast no
Operation modes normal, configuration
Button press yes
On off switch yes
Chip NRF51822
Transmit distance 50m
Android config app yes
iOS config app no

iBS03RG

  • Brand: INGICS
  • Product Code: iBS03RG
  • Availability: 8
  • £42.00

  • Ex vat: £35.00

Tags: sensor
