Bluetooth IoT Sensors

There’s a type of beacon that doesn’t send out iBeacon or Eddystone advertising. Instead, it sends out standard Bluetooth 4.0 advertising containing sensor values. This means the data can be picked up via apps, gateways, Raspberry Pis or other devices that can see Bluetooth advertising.

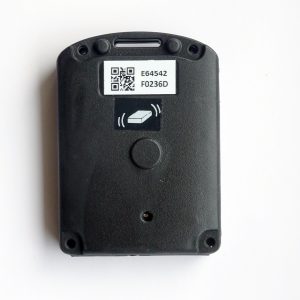

An example of this is the INGICS iBS01 range of beacons.

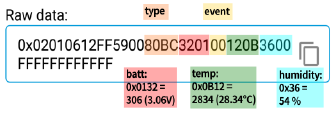

The round bit in the middle is a button that can be pressed. Here’s an example for the data from the iBS01T temperature/humidity sensor:

Additionally, the ‘event’ data gives the state of the button press.

Read more about Using Bluetooth Wireless Sensors

Sensor Beacons

New INGICS Bluetooth Sensor Beacons

We have some new INGICS Sensor beacons in stock.

These are slightly different to our other beacons in that they don’t transmit iBeacon or Eddystone. Instead the Bluetooth advertising is wholly used for sensor and battery information. Hence, they are more suitable for sensing, security and IoT applications rather than retail-marketing type scenarios.

There are 4 models:
iBS01G – movement/fall sensor
iBS01H – magnetic (hall) sensor
iBS01RG – (raw) accelerometer sensor
iBS01T – temperature and humidity sensor


They derive power from 2xCR2032 or via a micro USB smartphone charger (not supplied). They all also have a detectable button press. While the manufacturer’s app shows the sensor data, you will probably need a custom app or gateway to scan and use the advertising data.
